Navistar Electronic Engine Controls DT466E (1996-2004)

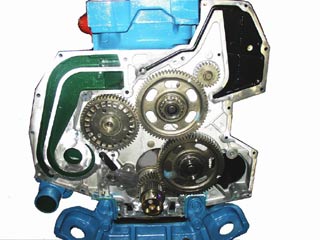

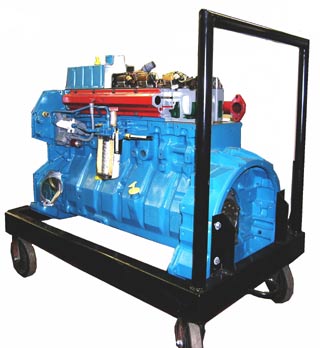

Covers the DT466E and 530E engines produced from 1996 to 2004, including all operating systems: fuel supply and delivery, complete HEUI theory and application, oil pump low pressure and high pressure circuits, all plumbing circuits involved for both systems, computer and injector driver module systems, diagnostic procedures, computer strategies, injector sleeve replacements, common problems and pattern failures. A complete cutaway DT466E engine will be torn down in the classroom to examine fuel delivery. A wide variety of engine parts are provided for demonstration purposes: cylinder head, turbocharger, fuel injectors, sensors, pumps, a complete fuel system, and more. A cylinder head, which has been cut in half to expose all passageways, also is used. This class includes using a full electronic demonstrator board to further explain how the fuel control system works. The class expands on diagnostics with time spent in the shop doing live tests on running Navistar equipped trucks with the factory MD Fleet software, ProLink, or other tool. A cutaway variable turbocharger accompanies this class.
A full-color training manual is provided.
